ディスプレイ用ヘリカル型、リング型
製品別仕様
| MFT-75F | MFT-118 | MFT-218 | MFT-220 | MFT-60R | MFT-67RH | MFT-220H | |
| Design Anode Voltage(Vdc) | 400 | 500 | 1,000 | 350 | 900 | 900 | 500 |
| Min. Anode Voltage(Vdc) | 350 | 350 | 800 | 290 | 800 | 800 | 350 |
| Max. Anode Voltage (Vdc) | 500 | 550 | 1,150 | 390 | 1,100 | 1,100 | 550 |
| Max. Flash Energy (Joule) | 70 | 200 | 250 | 300 | 200 | 600 | 300 |
| Normal Flash Energy (Joule) | 60 | 180 | 220 | 270 | 180 | 540 | 270 |
| Max. Flash Rate at Max. Flash Energy (FPS) | 1/15 | 1/15 | 1/15 | 1/15 | 1/10 | 1/10 | 1/7.5 |
| Ave. Power Input Max. (Joule * FPS) (W) | 4.7 | 13.3 | 16.7 | 20 | 20 | 60 | 40 |
| Min. Trigger Pulse Voltage (KVP) | -6 | -6 | -6 | -6 | -6 | -6 | -6 |

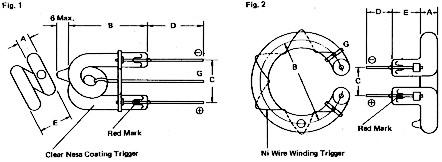

| Dimensions A mmφ | 5.7 | 6.2 | 6.2 | 8 | 8 | 9 | 8 |
| Dimensions B mm | 27 | 40 | 42 | 43 | 60 | 67 | 43 |
| Dimensions C mm | 14 | 17 | 21 | 24 | 12 | 19 | 24 |
| Dimensions D mm | 38 | 38 | 38 | 38 | 38 | 40 | 38 |
| Dimensions E mm | 13 | 14 | 15 | 18 | 14 | 14 | 18 |
| Figure Number | 1 | 1 | 1 | 1 | 2 | 2 | 1 |
| Ave. Flash Life at Normal Flash Energy (Flashes) | 10,000 | 10,000 | 10,000 | 10,000 | 10,000 | 10,000 | 10,000 |
Note: FPS= Flash Per Second
