HIGH PERFORMANCE YAG LASER PUMPING FLASH

Product Specifications

YAG laser pumping Kr-C.W.

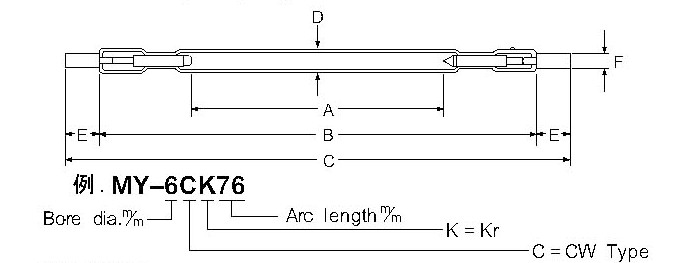

yag Kr.jpg (28293 バイト)

Arc Lamp
　 A B C D E F
MY-3CK 76 76 124 150 3 13 4.75
MY-4CK 50 50 129 167 4 19 4.75
MY-4CK 76 76 154 192 4 19 6.3
MY-6CK 76 76 154 180 6 13 6.3
MY-6CK 100 100 178 204 6 13 6.3
MY-6CK 150 150 230 255 6 13 6.3
MY-7CK 150 150 238 263 7 13 6.3

(Unit／mm)

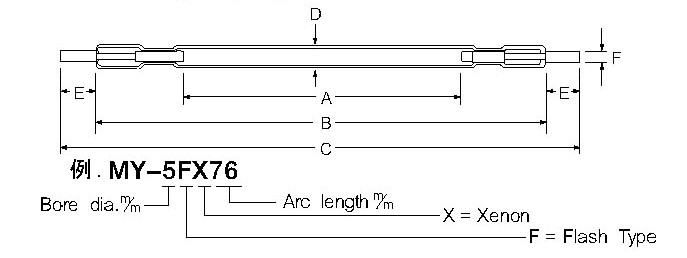

yag xe.jpg (28167 バイト)

Flash Lamp
　 A B C D E F
MY-3FK 76 76 141 167 3 13 4.75
MY-4FK 76 76 141 167 4 13 4.75
MY-4FK 100 100 165 191 4 13 4.75
MY-5FK 50 50 114 140 5 13 4.75
MY-5FK 76 76 141 167 5 13 4.75
MY-7FK 77 77 141 167 7 13 4.75
MY-7FK 100 100 165 191 7 13 4.75

＊A=Arc length  B=Quatz lenth  C=Overall length  D=Bore diameter   F=Base diameter

(Unit／mm)

　
